Starter Repair Kit Fits Delco Fits Teledyne Wisconsin VH4D 1107386

Name: Starter Repair Kit Fits Delco Fits Teledyne Wisconsin VH4D 1107386
SKU: D1689-STRTREPAIRKIT_3
Price: 45.0 USD
Availability: OutOfStock

Starter Repair Kit Fits Delco Fits Teledyne Wisconsin VH4D 1107386

$45.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One (1) New Aftermarket Replacement Fits Delco Starter Repair Kit

Fits Teledyne Wisconsin VH4D 1107386 Brush Bushings Springs

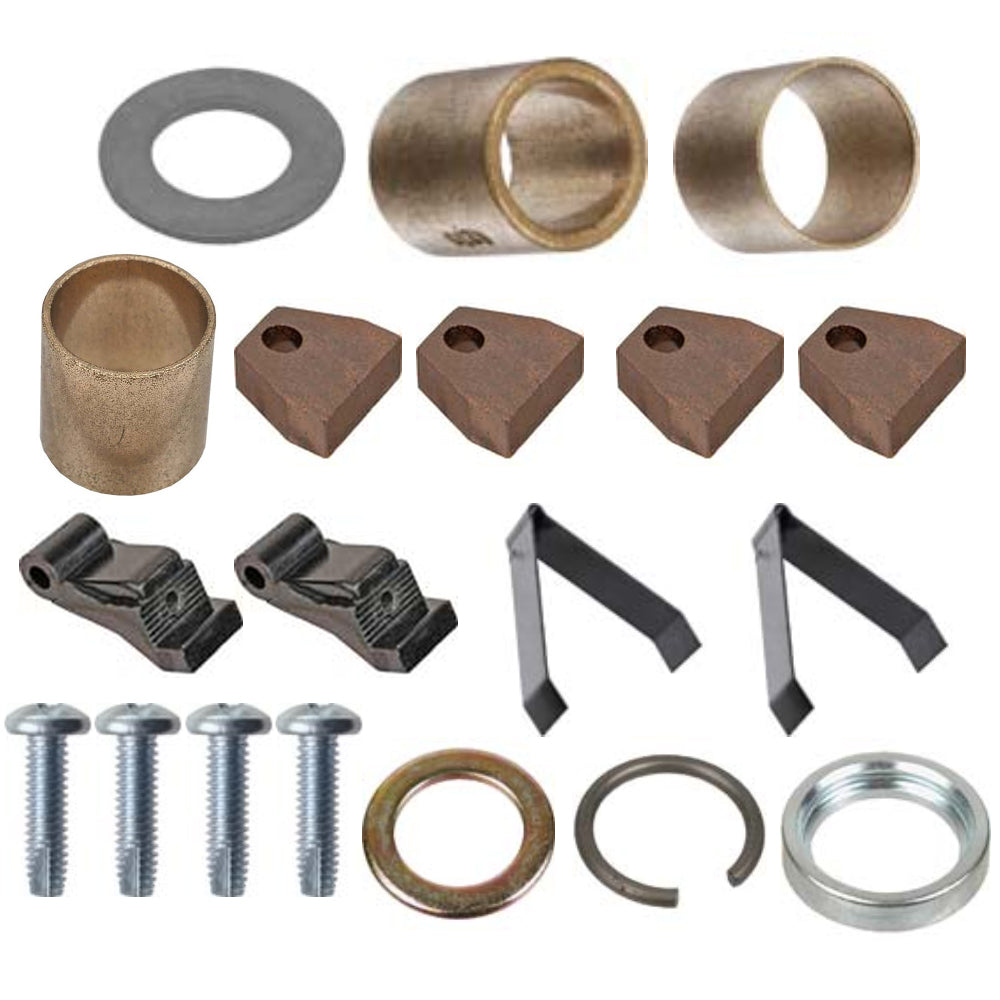

This Kit Contains:
(1) Thrust Washer
(1) Commutator End Bushing
(1) Center Bushing (Early)
(1) Center Support Bushing (Late)
(1) Starter Bushing
(4) Starter Brush
(2) Brush Holder
(2) Brush Spring
(4) Brush Holder Screws
(1) Steel Thrust Washer
(1) Retaining Ring
(1) Collar

Applications Include:
Fits Minneapolis Moline Stand Up Wisconsin VH4D 1965 - 1965
Fits Teledyne - Wisconsin THD 1967 - 1972 Right Hand Mount
Fits Teledyne - Wisconsin TJ 1970 - 1972 Right Hand Mount
Fits Teledyne - Wisconsin V461D 1967 - 1978 Right Hand Mount
Fits Teledyne - Wisconsin VF4 1970 - 1972 Right Hand Mount
Fits Teledyne - Wisconsin VF4D 1975 - 1978
Fits Teledyne - Wisconsin VG4D 1967 - 1978 Right Hand Mount
Fits Teledyne - Wisconsin VH4D 1967 - 1978 Right Hand Mount

Models This Part Fits:

12004, 12011, 12013, 12023

Additional Information:

(1) Thrust Washer Measurement: Standard ID: 0.563" / 14.3mm OD: 1" / 25.4mm Thickness: 0.058" / 1.47mm Replaces Part Numbers: 1914842 (1) Commutator End Bushing Location Used: DE Housing ID: 0.501" / 12.73mm OD: 0.627" / 15.93mm Width: 0.776" / 19.7mm Bushing Type: Oilite Bushing Size: Standard Replaces Part Numbers: 10470767, 1857960, 1862383, 1862391, 1906945 (1) Center Bushing (Early) ID: 0.755" / 19.18mm OD: 0.815" / 20.7mm Width: 0.715" / 18.16mm Bushing Type: Oilite Replaces Part Numbers: 1934485 (1) Center Support Bushing (Late) ID: 19.23mm OD: 22.34mm Length: 18.30mm Replaces Part Numbers: 1894023 (1) Starter Bushing ID: 0.564" / 14.33mm OD: 0.629" / 15.98mm Width: 0.65" / 16.51mm Replaces Part Numbers: 1938743, 35058, 810620, 9B-9103, D1676, MCX203 (4) Starter Brushes Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces Part Numbers: 1906945, 1906966, 1946400 (2) Brush Holders For Starters Insulated & Tapped with 8-32 Threads Replaces Part Numbers: 5M3294, 665545 (2) Brush Springs 20-27MT Series w/ Step-Down Field Case Replaces Part Numbers: 6515795, 6515795REM, 6599152, 6630180, 6630182 (4) Brush Holder Screws Measurement: Standard Shank Length: 0.626" / 15.9mm Thread Size: 8-32 Head Style: Phillips Pan Head Notes: Self-Tapping Replaces part Numbers: 451-08013 (1) Steel Thrust Washer Measurement: Standard ID: 0.5" / 12.7mm OD: 0.732" / 18.6mm Thickness: 0.063" / 1.6mm English Size: 1/2 Replaces Part Numbers: 456-01000, 456-31000 (1) Retaining Ring ID: 0.52" / 13.2mm OD: 0.65" / 16.5mm Thickness: 0.067" / 1.7mm Replaces Part Numbers: 1928022 (1) Collar ID: 0.563" / 14.3mm OD: 0.783" / 19.9mm Thickness: 0.157" / 4mm Notes: Drive Replaces: HDW9203
