Mower Deck Rebuild Kit - Bolts Spindle Assemblies Mower Blades Belt Idler Pulley

Mower Deck Rebuild Kit - Bolts Spindle Assemblies Mower Blades Belt Idler Pulley

$148.00 CAD
$148.00 CAD
Sale Sold out
Shipping calculated at checkout.

More payment options

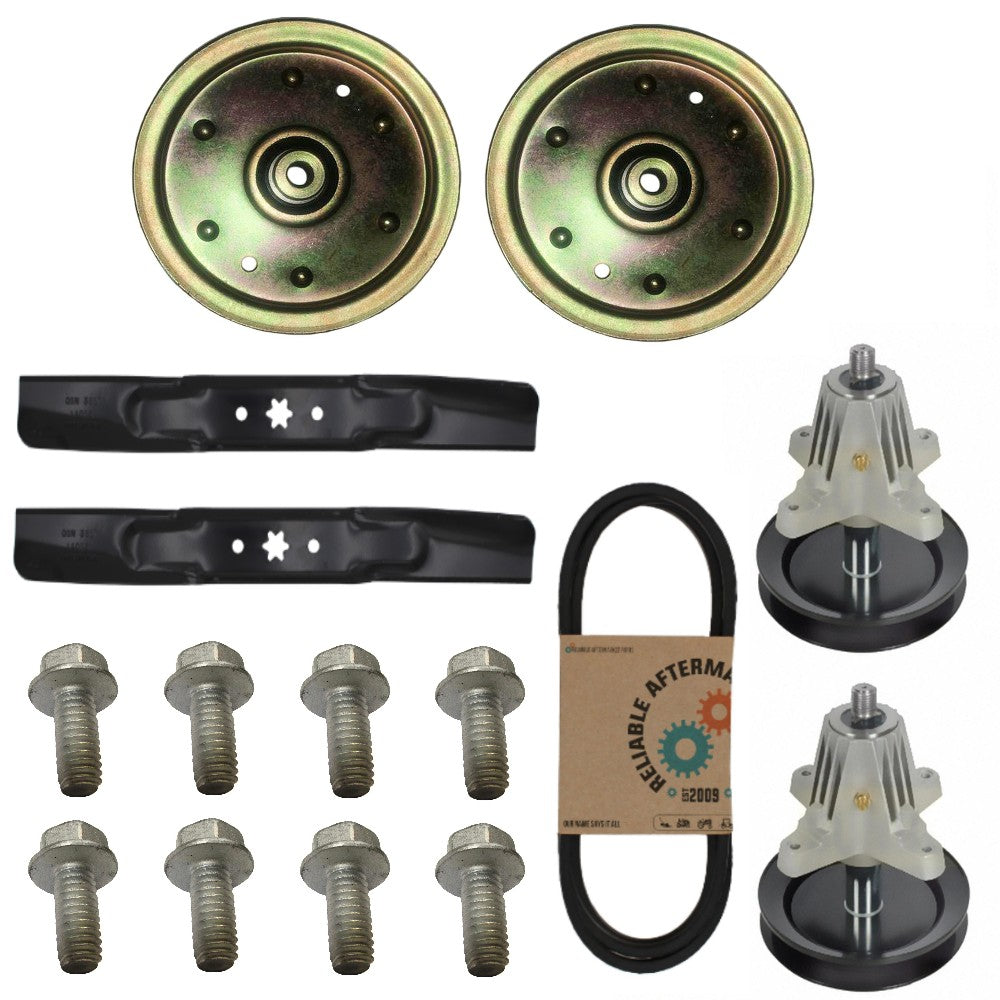

One New Aftermarket Replacement Mower Deck Rebuild Kit

Fits MTD 42" Lawn Mower Decks

Kit Contains:
(8) Thread Cutting Bolt
(2) Spindle Assembly
(2) 42" Deck Mower Blade
(1) 96.50" Deck Drive Belt
(2) Flat Idler Pulley (Zinc)

Bolt Tech Info:
5/16"-18
3/4" Long
Replaces Part Numbers: 112-0395, 710-04484, 710-0650, 710-1260A, GX22456


Spindle Assembly Tech Info:
OD of Pulley: 6"
Specially designed: to replace 6 pt. star spindle shaft
Pulley included
No threads in housing, use Thread Cutting Bolts
Use with LAE40-0021 Thread Cutting Bolt
Length 3/4"
Thread 5/16" -18
Requires 4 Bolts per Spindle

Replaces Part Numbers: 13CC26JD011, 17ARCACS011, 618-04822, 700, 700 Series, 918-04822, CC30, CC30 Mini Rider, EZT-L42, KT725-3012, LT1500, LT2000, LT4200, LTX1040, LTX1042, LTX1042KH, LTX1042KW, LTX1045, R1000 Z6000 ZT-S42 KH, RZT-42, RZT-L42, RZT-S42


42" Deck Mower Blade Tech Info:
Fits 42" Tractor
Also Fits Toro LX and MTD 2010 Models.
Length- 21-1/4"
Width- 2-1/2"
H-Pattern Center Hole fits 6 Pt Star
Thickness- 0.156"

Replaces Part Numbers: 330-872, 742-04308, 742-0656, 942-04308, 942-04312, 942-0656


96.50" Deck Drive Belt Tech Info:
Belt Type: Covered
Width: 1/2"
Length: 96-1/2"

Replaces Part Numbers: 04060B, 11660, 265-201, 75-813, 754-04060, 754-04060B, 754-04060B-A, 754-04066, 75404060, 954-04060, 954-04060A, 954-04060B, 954-04060C, 95404060, 95404060B, 95404060C


Flat Idler Pulley (Zinc) Tech Info:
Inside Diameter: 3/8"
Outside Diameter: 4-7/8"
Height: 1"
Material: Metal (Zinc Coated)
Type: Heavy Duty

Replaces Part Numbers: 112-0314, 12675, 753-08171, 756-04129, 756-04129C, 756-04129C 956-04129C, 956-04129, 956-04129C

Additional Information:

For 42" Mower Decks Kit Contains: (2) Spindle Assembly OD of Pulley: 6" Specially designed: to replace 6 pt. star spindle shaft Pulley included No threads in housing, use Thread Cutting Bolts Replaces Part Numbers: 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950 (8) Thread Cutting Bolt Length: 3/4" Thread: 5/16"-18 (2) Mower Blade Length: 21-1/4" Width: 2-1/2" H-Pattern Center Hole Fits 6 Pt. Star Thickness: 0.156" (1) 96.50" Deck Drive Belt Belt Type: Covered Width: 1/2" Length: 96-1/2" Replaces Part Numbers: SPM201671081, 754-04060, 754-04060A, 754-04060B, 954-04060, 954-04060A, 954-04060B, GX10851, 954-04060C, GX10851 (2) Flat Idler Pulley (Zinc) Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" Material: Metal (Zinc Coated) Type: Heavy Duty Replaces Part Numbers: 756-04129B, 756-04129C, 956-04129, 956-04129C, 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C (2) Mower Blade Length: 21-1/4" Width: 2-1/2" H-Pattern Center Hole Fits 6 Pt. Star Thickness: 0.156" Replaces Part Numbers: CMXGZAM110108, CMXGZAM110180, 490-110-C108, 742-04308

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
View full details
