Driveline Assmb 1 3/8" 6 Spline QD Yokes Max C-to-C Length: 77" 1960 mm Fits CAT
Driveline Assmb 1 3/8" 6 Spline QD Yokes Max C-to-C Length: 77" 1960 mm Fits CAT
Regular price
$370.00 CAD
Regular price
Sale price
$370.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Driveline Assembly that fits: several Finishing Mower models and features all of the following:
Driveline Assembly Contents:
View full details
- Size: 6

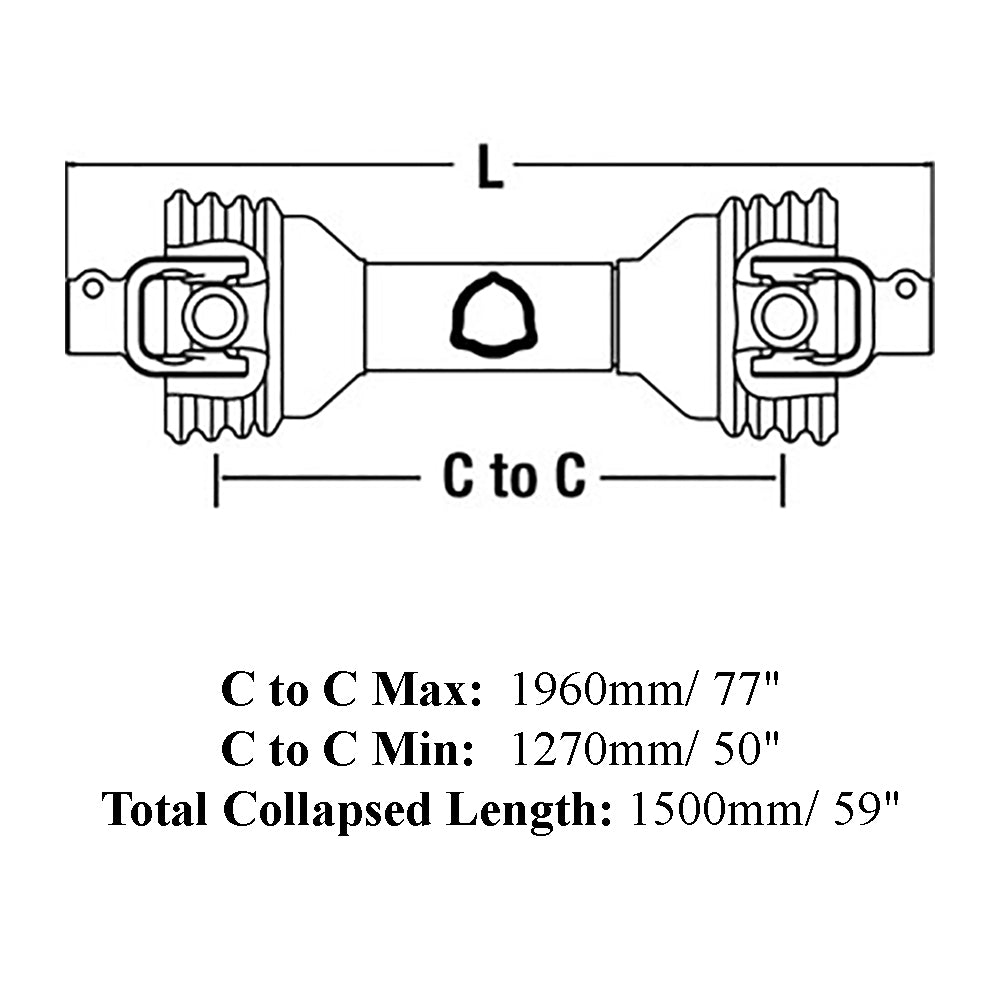

- Min C-to-C Length: 50" (1270 mm)
- Max C-to-C Length: 77" (1960 mm)
- Total Collapsed Length: 59" (1500 mm)
- Tractor Implement: 1-3/8" 6 Spline
- Series: 100
- Fits CATegory: 4 HD (64HP)

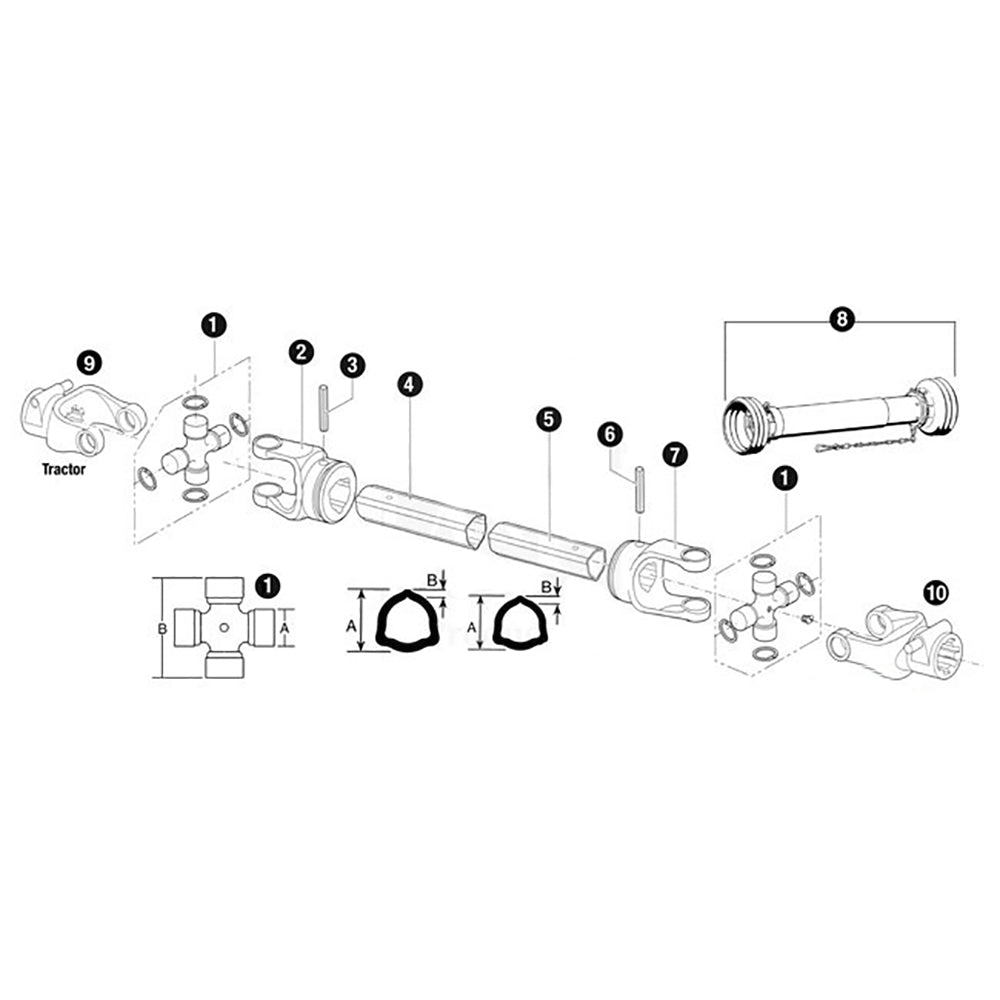

Driveline Assembly Contents:
- (1) Inner Tube, Part # BP125091500-A (Ref. # 5)
- (1) Outer Tube Size 6 & 7 or Inner Tube Size 8, Part # BP125121500-A (Ref. # 4)
- (1) Outer Tube Yoke, Part # BP204066851-A (Ref. # 2)
- (1) Inner Tube Yoke, Part # BP204066852-A (Ref. # 7)
- (2) Cross & Bearing Kits, Part # BP41206-A (Ref. # 1)
- (2) Tractor Yokes (Splined, 1-3/8", 6 Spline w/ QDP), Part # BP507060351-A (Ref. # 9 & 10)
- (1) 10 MM x 65 MM Roll Pin (2 Pack), Part # P10X65 (Ref. # 6)
- (1) 10 MM x 70 MM Roll Pin (2 Pack), Part # P10X70 (Ref.
