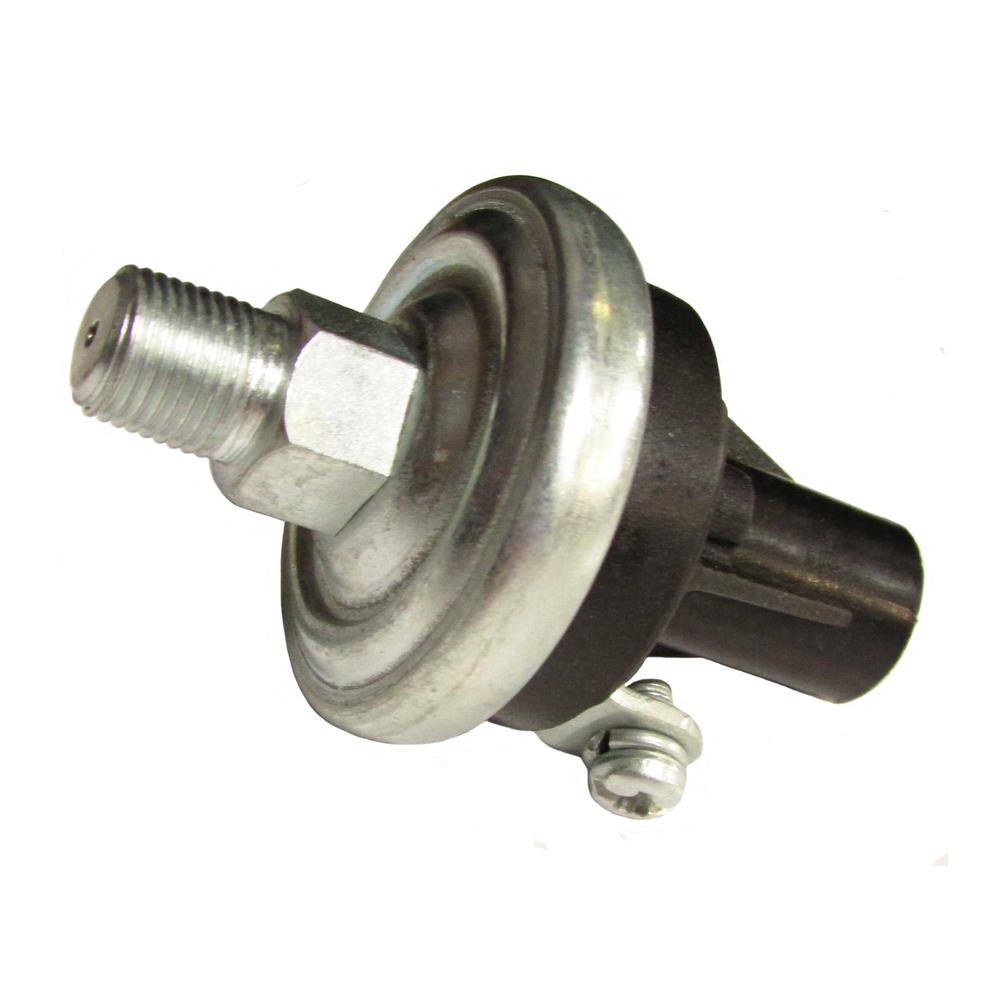

76575-4 Adjustable Boost Pressure Switch fits Hobbs Honeywell M4006-4

$25.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One (1) New Aftermarket Replacement Adjustable Pressure Switch

Fits Hobbs or Honeywell Models.

Tech Info:
Extended Duty Switch
Single Pole, Single Throw
Normally Open
Terminal: # 8-32 Screw
Base: Plated Steel
Diaphragm: Polymide Film
Termination: Screw
Contact(s): Silver Alloy, Gold Plated
Circuit: Single Circuit, Two Terminals
Connector(s): 1/8-27 NPT Male Thread

Works with Air and Oil.

Will work with Hydraulic oil per Rock at Transelectric.

Replaces Part Number: 76575-4

Models This Part Fits:

4D-4785, M4006-4

Additional Information:

Single Circuit With Two Insulated Terminals. This Is A 4 # N/O Pressure Switch Typically Used To Activate Hour Meters From The Engine Oil Pressure Contact Setting: 3.1 Psi To 7 Psi Factory Setting: 4 Psi Operating Pressure: 150 Psi Proof Pressure: 500 Psi Burst Pressure: 750 Psi Normally Open. Closes At 4 Psi. 1/8" Male Pipe Thread Connection Extended duty switch. Normally open. Single pole, single throw. #8-32 screw terminal. Plated steel base. Polyamide film diaphragm. Silver alloy, gold plated contacts. Glass reinforced polyester cover. 15 amps @6V DC resistive rating. 8 amps @ 12V DC resistive rating. 4 amps @ 24V DC resistive rating. 1 amps @ 120V AC inductive rating. 0.5 amps @ 240V AC inductive rating. 40°F to 250°F temperature.
