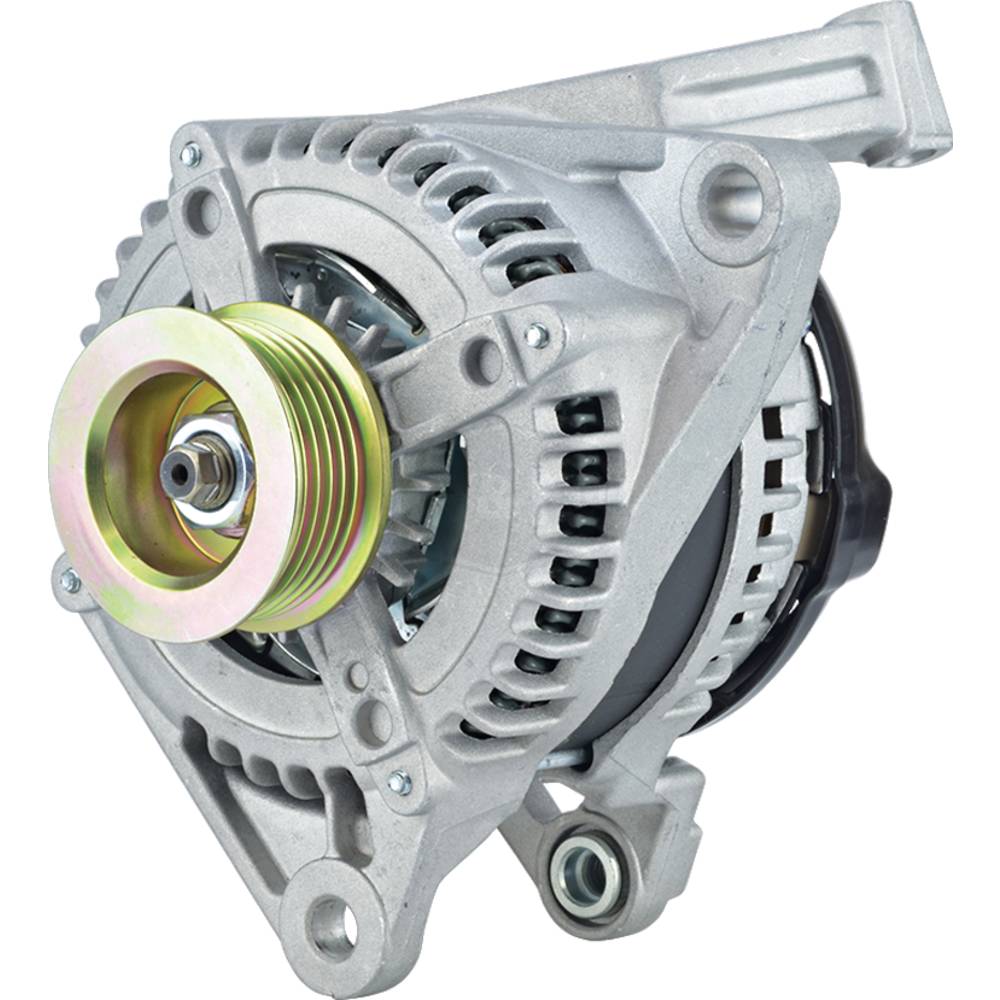

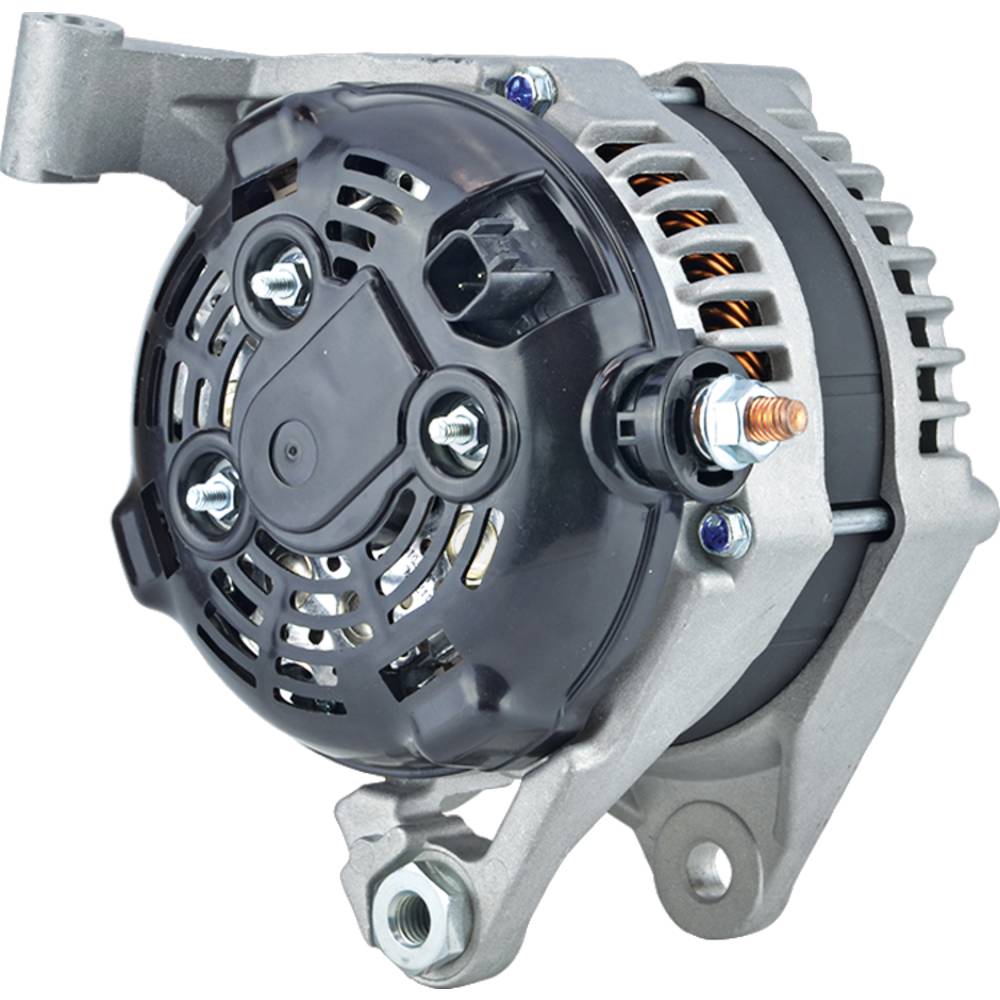

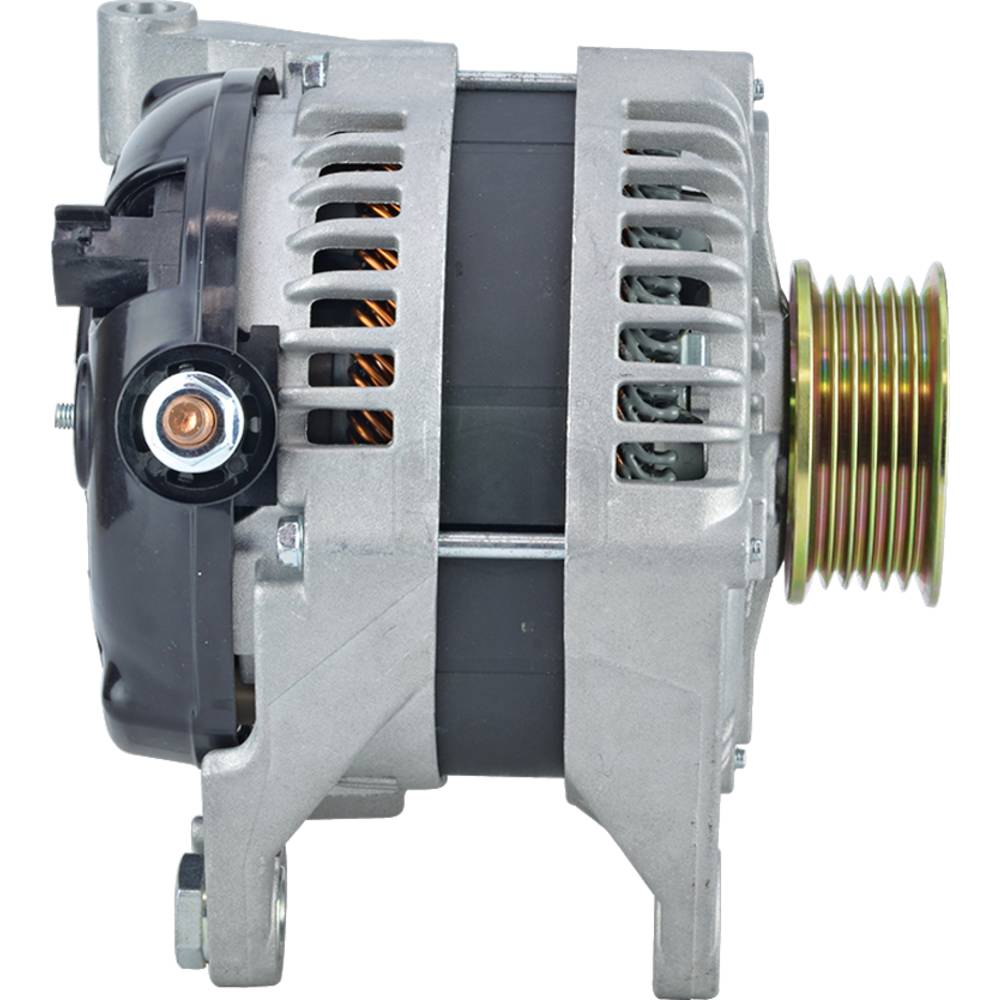

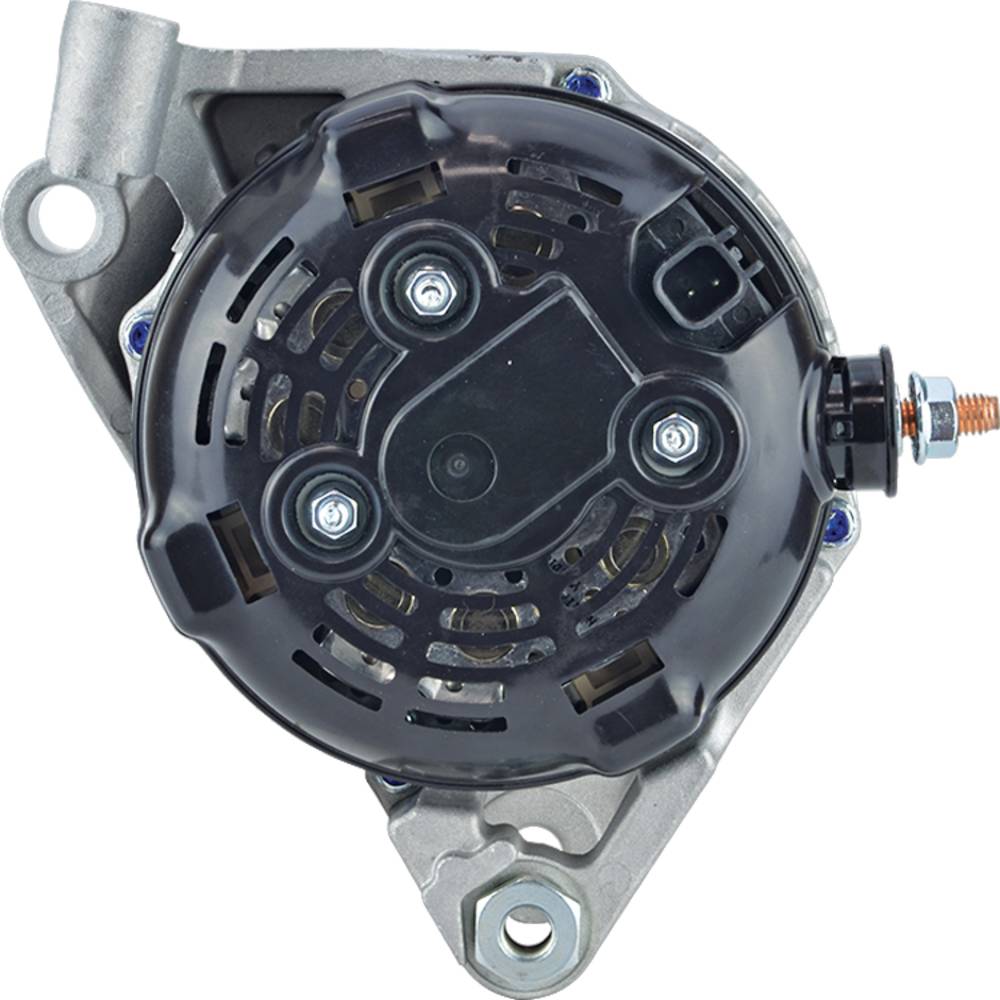

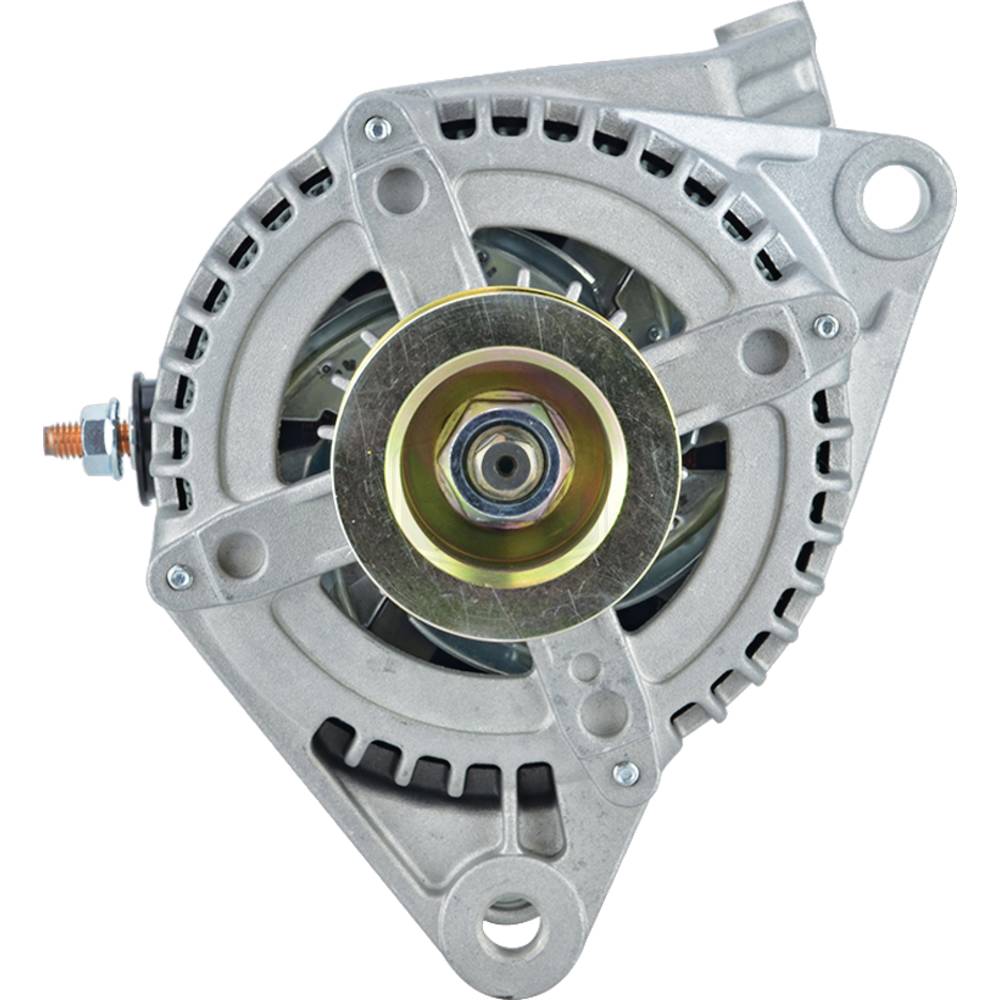

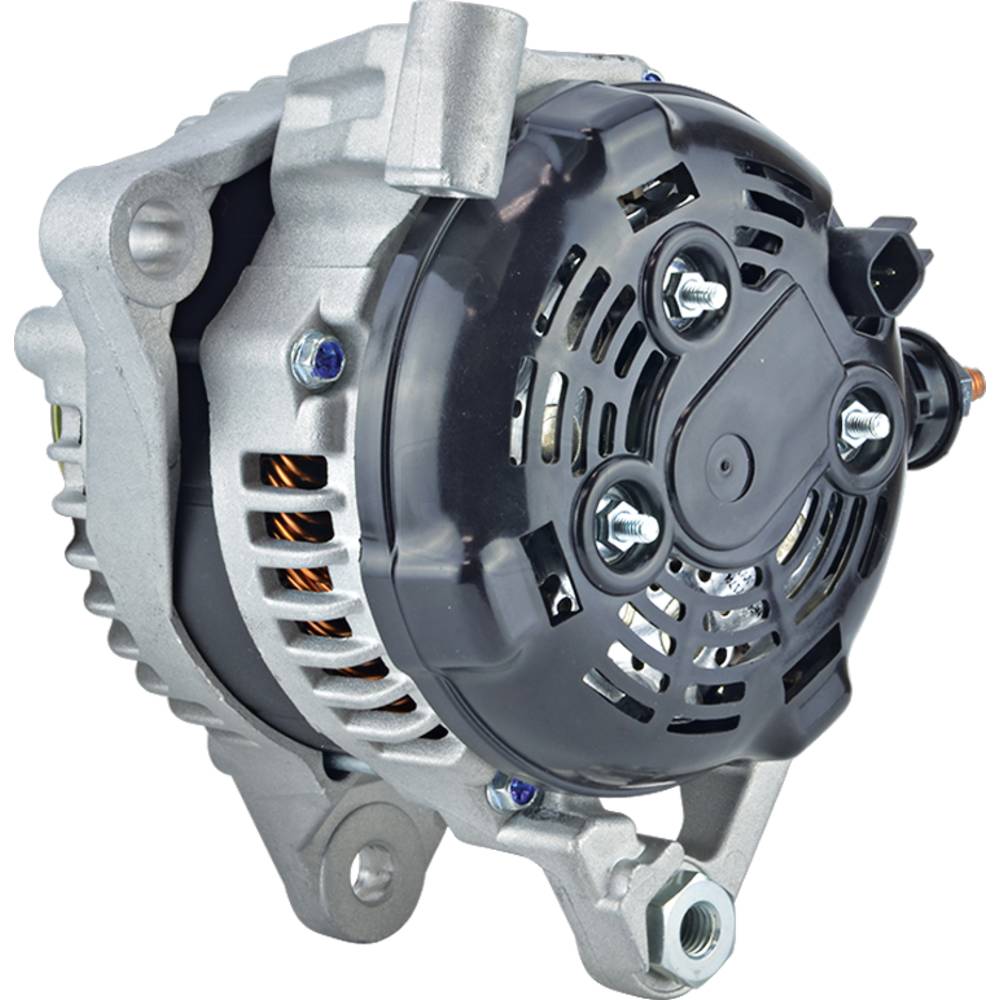

400-52373R-JN J&N Electrical Products Alternator

Additional Information:

LESTER: 11240, FAMILY: Denso SC (Hairpin), VOLT: 12, AMPS: 160, CONDITION: Remanufactured, REGULATOR CLOCK: 3:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 13mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 10.300mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M10x1.50, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.780", MOUNTING EAR THICKNESS: 19.800mm, MOUNTING EAR 2 THICKNESS: 0.465", MOUNTING EAR 2 THICKNESS: 11.800mm, MOUNTING EAR 3 THICKNESS: 1.213", MOUNTING EAR 3 THICKNESS: 30.800mm, MOUNTING EAR 4 THICKNESS: 0.752", MOUNTING EAR 4 THICKNESS: 19.100mm, FAN LOCATION: Internal, REGULATOR LOCATION: External, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: F1, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: S, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.469", GROOVE OD: 62.700mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.697", PULLEY OUTER DIAMETER: 68.500mm, WARRANTY: 1 Year, Arrowhead: 40

Reference Numbers:

400-52373R
