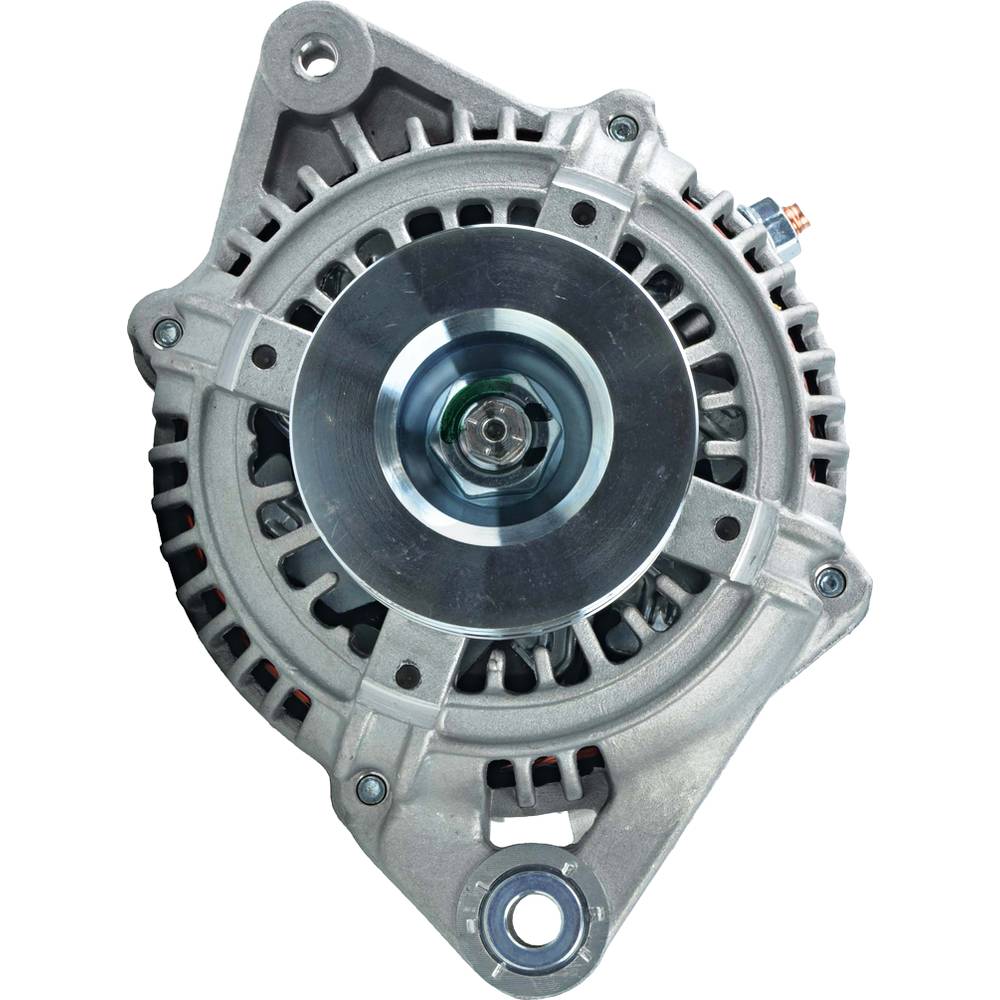

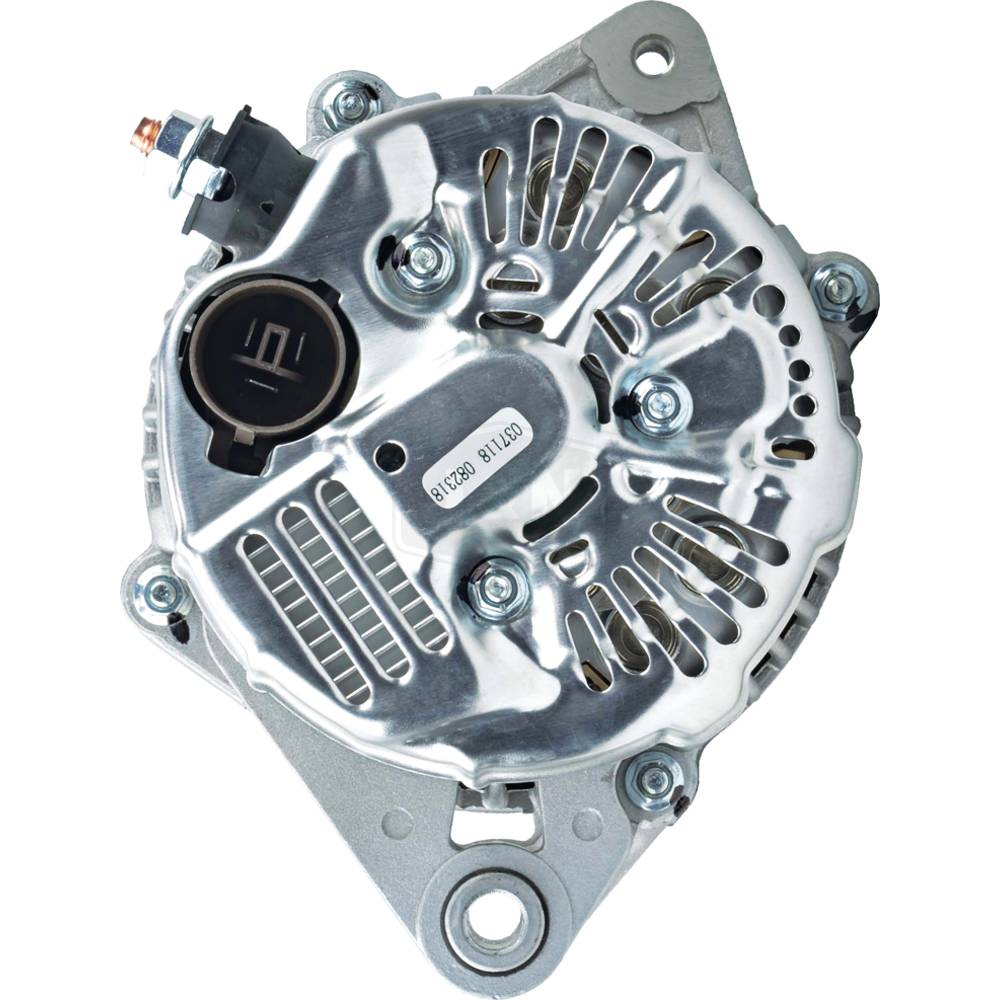

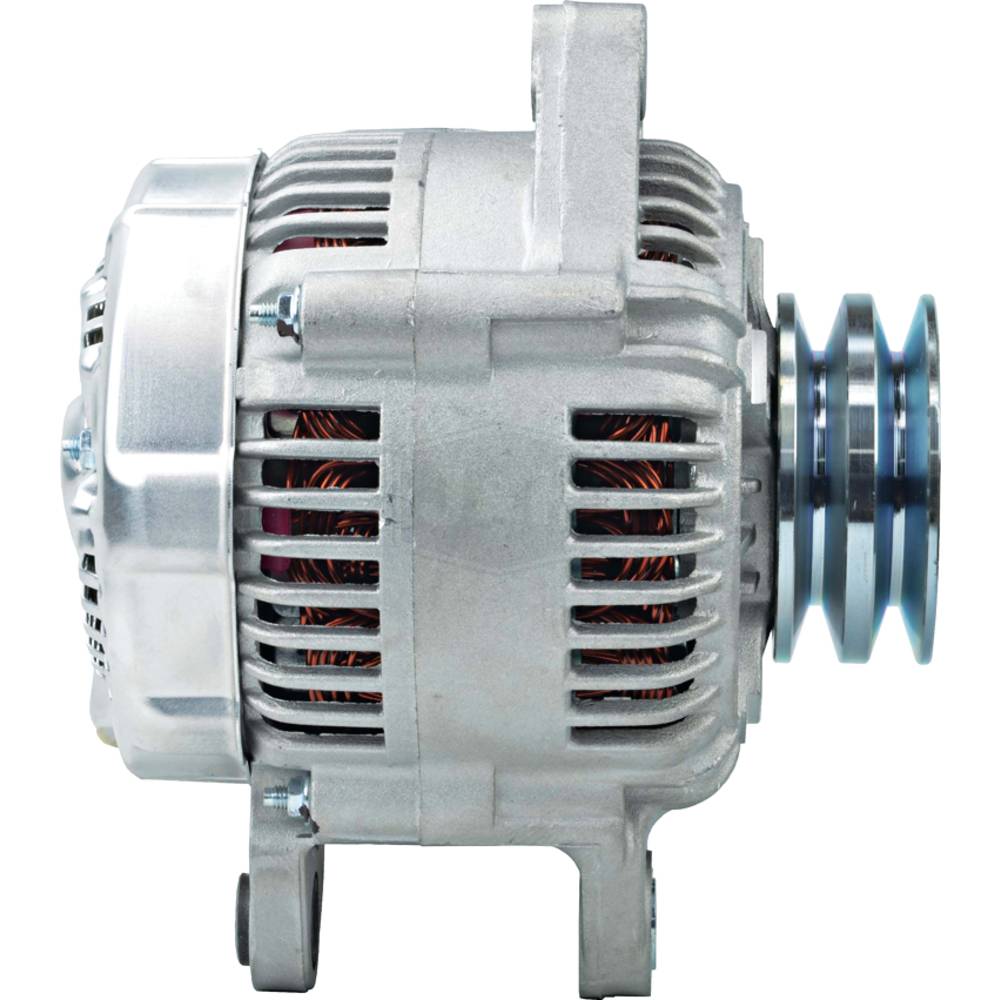

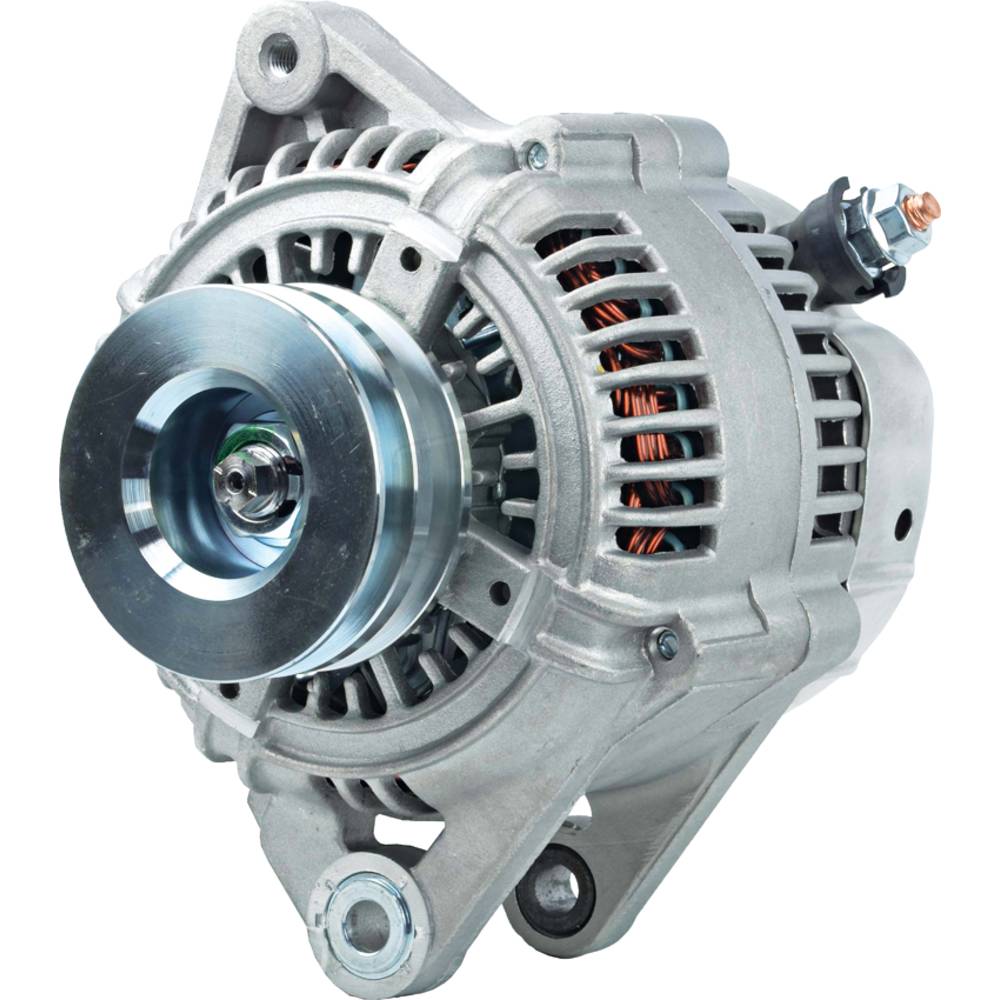

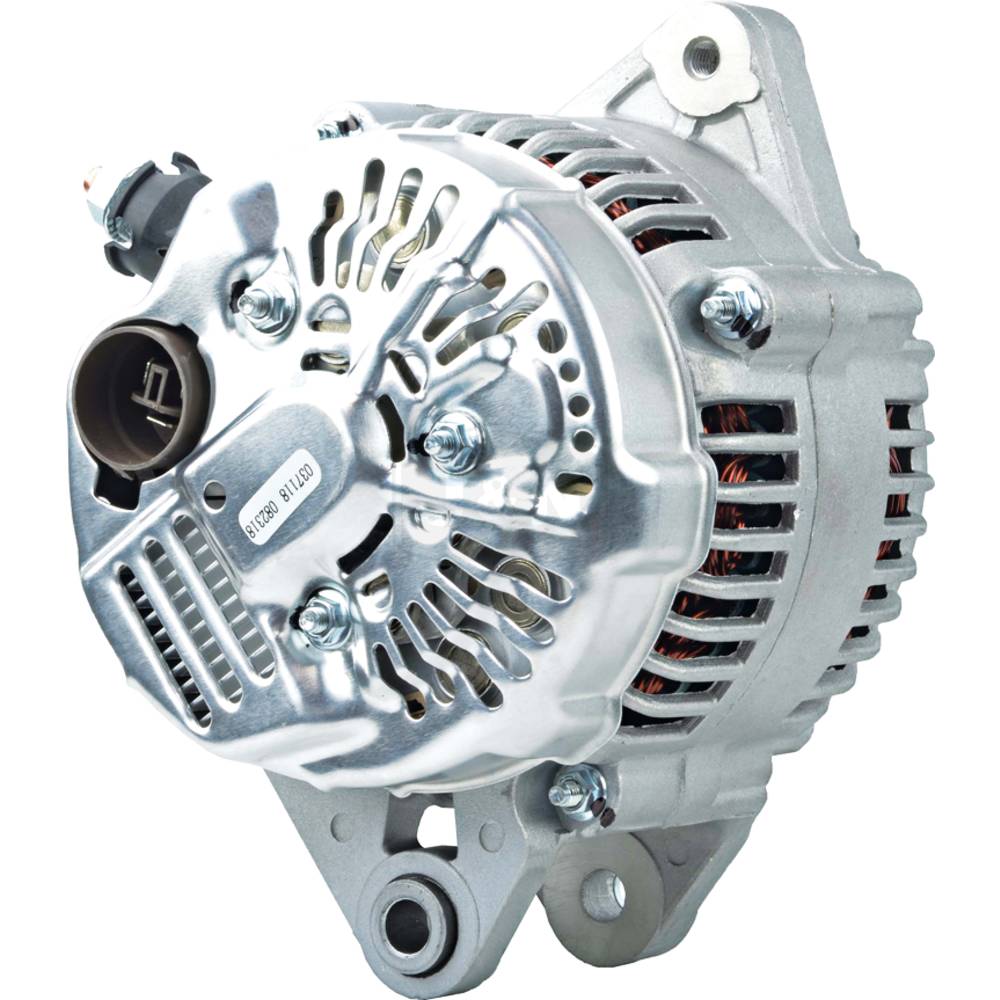

400-52333-JN J&N Electrical Products Alternator

400-52333-JN J&N Electrical Products Alternator

$298.00 CAD
$298.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: AND0092; Fits Bosch: AL3239X; Fits Denso: 100211-6130, 100211-6131, 210-0177; Lester: 13562; Fits Toyota: 27060-61100
-LESTER: 13562, VOLT: 12, AMPS: 90, CONDITION: New, REGULATOR CLOCK: 9:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 10mm, MOUNT HOLE 3 TYPE: Unthreaded, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: IG, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 2, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 3.425", PULLEY OUTER DIAMETER: 87mm

Replaces Part Number(s): 400-52333

Additional Information:

Arrowhead: AND0092; Bosch: AL3239X; Denso: 100211-6130, 100211-6131, 210-0177; Lester: 13562; Toyota: 27060-61100, LESTER: 13562, VOLT: 12, AMPS: 90, CONDITION: New, REGULATOR CLOCK: 9:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 10mm, MOUNT HOLE 3 TYPE: Unthreaded, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: IG, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 2, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 3.425", PULLEY OUTER DIAMETER: 87mm

Reference Numbers:

400-52333
